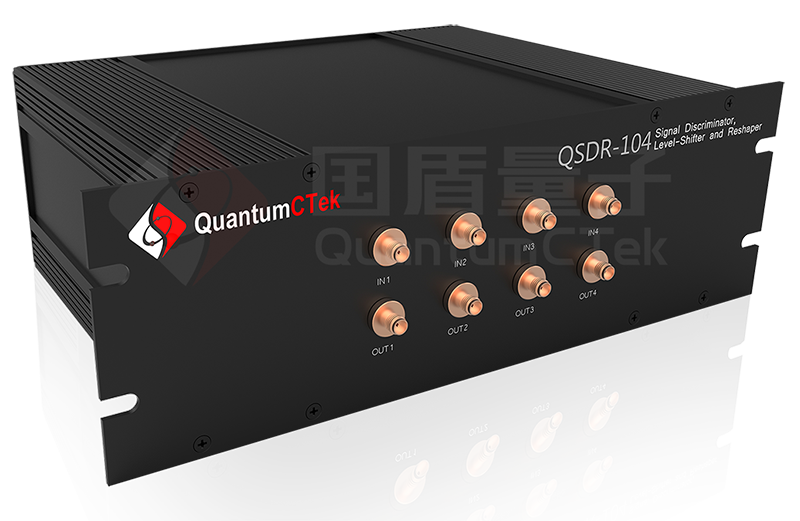

QSDR-10X Signal Shaping and Level Translator

QSDR-104 realizes the adaption and conversion of signal levels between different electronic system by discriminating, converting and reshaping input signal based on user's requirements. For instance, reshaping negative level signal to positive one, converting faint pulse to standard LVTTL/CMOS digital level.

The discrimination level can be configured on the spot. level types and signal shapes are optional.
