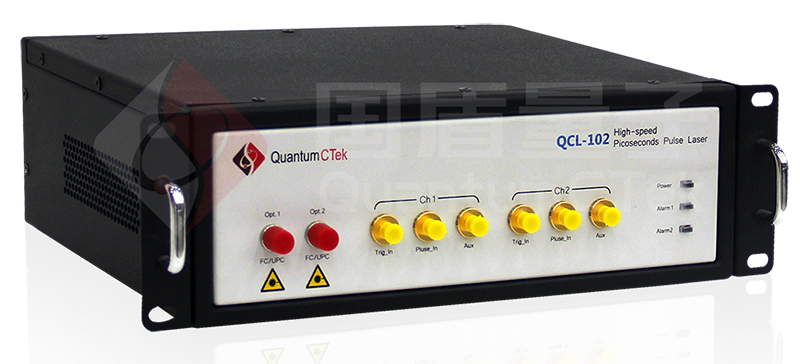

QCL-100 High-speed Picosecond Pulsed Laser provided ultra-short laser pulses typically of several tens of picoseconds. Applying the originally-developed narrow-pulse-shaping technique, outstanding features are obtained, including high repetition frequency, narrow pulse width, high extinction, phase randomization. QCL-100 high-speed picosecond pulsed laser with high performance and low cost is an excellent candidate for quantum secret communication, single photon detector test and other applications.
High repetition rate
Ultra-narrow pulse width
The maximum extinction ratio
1 to 4 channels available, small volume
High peak power
Auxiliary synchronous output
Optional polarization maintaining fiber output
Stability
Quantum key distribution (QKD)
Time-resolved fluorescence analysis
Single photon generation
The test of single photon detector
Laser radar
laser | |
wavelength | 1550nm/1310nm/ 850nm |
output forms | SMF output, FC/APC |
optical pulse output | |
pulse width | 30ps--100ps |
peak power | >0dBm, 5dBm (typ.) |
extinction ratio | >30dB |
repetition frequency | >1.25GHz |
